LPS-402 Digital Phase Shifter

LPS-402

2 – 4 GHz USB Programmable Phase Shifter

The LPS-402 Lab Brick USB programmable 50 Ohm, high precision RF Phase Shifter has 360-degree range settable in 1-degree increments. Using our automated test stand, each phase shifter is calibrated across the frequency range providing optimal accuracy. The unit is powered and controlled by USB connection to a PC or self-powered hub, and is programmable from the included graphical user interface (GUI) software. Alternatively, Vaunix supplies LabVIEW drivers, Windows API DLL files, macOS DYLIB files, Linux drivers, Python examples, and more for users wishing to develop their own interface.



In Stock

LPS-402

2 – 4 GHz USB Programmable Phase Shifter

The LPS-402 Lab Brick USB programmable 50 Ohm, high precision RF Phase Shifter has 360-degree range settable in 1-degree increments. Using our automated test stand, each phase shifter is calibrated across the frequency range providing optimal accuracy. The unit is powered and controlled by USB connection to a PC or self-powered hub, and is programmable from the included graphical user interface (GUI) software. Alternatively, Vaunix supplies LabVIEW drivers, Windows API DLL files, macOS DYLIB files, Linux drivers, Python examples, and more for users wishing to develop their own interface.



In Stock

LPS-402 Digital Phase Shifter

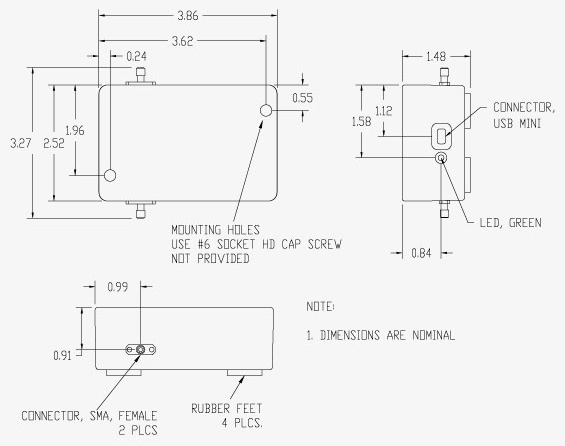

Vaunix LPS-402 Phase Shifter Mechanical Drawing

Features

  • USB powered and controlled
  • Includes Windows GUI and SDK, Linux SDK, LabVIEW driver, Python examples and more
  • 360-degree control in 1-degree steps
  • SMA connectors
  • Easily programmable for ATE applications

Applications

  • Beam forming
  • Signal cancellation
  • Phase modulators
  • MIMO test platforms for LTE and WIFI
  • Phased array antenna systems

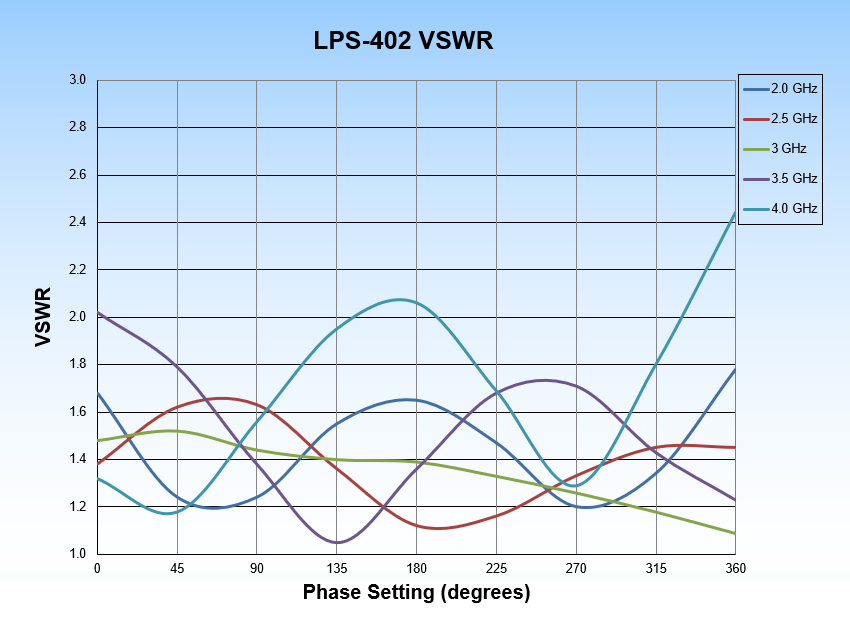

LPS-402
Freq.
Min

(GHz)
Freq.
Max

(GHz)
Phase
Adjustment
Range
Phase
Adjustment
Resolution

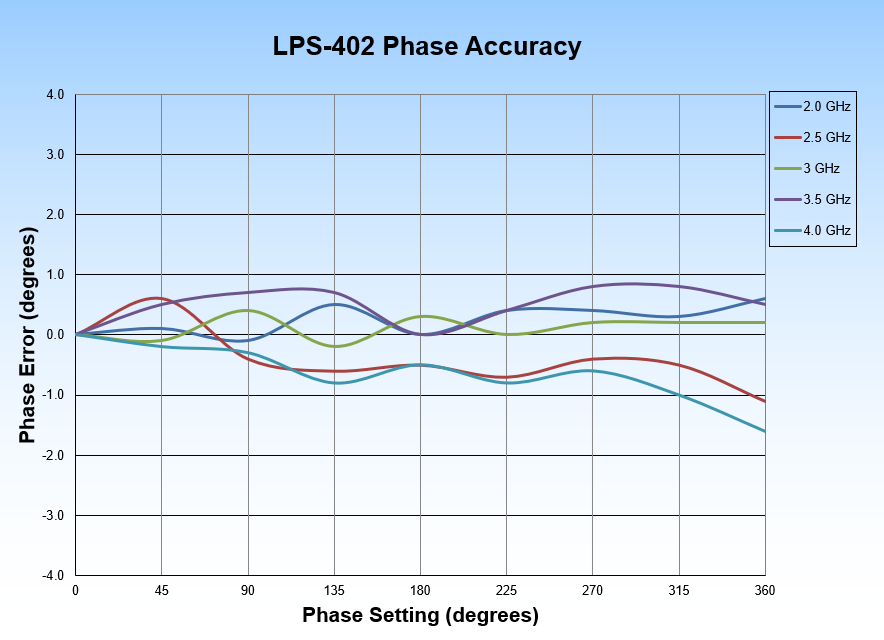

Phase
Adjustment
Accuracy

Typ.
Programmable
Phase
Profiles
External
Triggering
Response
Time

(µsec.)

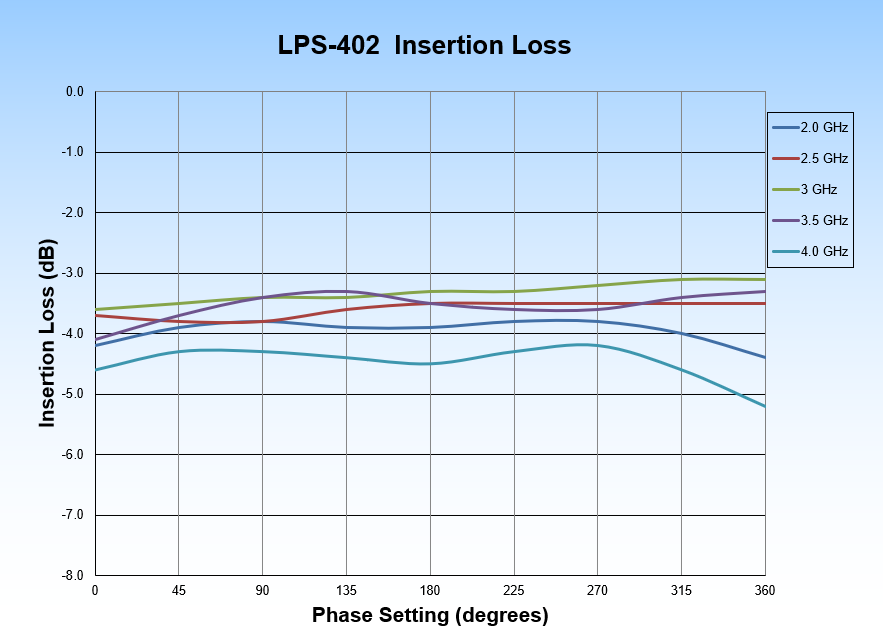

Insertion
Loss
USB
Connector
24360°± 2.5°User DefinedOptional105 dB typical, 8 dB maximumMiniB

Accessories

VNX-3m
9' USB Cable Type A/miniB
9
Ships within Within 24 hrs.
VNX-5m
15' USB Cable Type A/miniB
15
Ships within Within 24 hrs.
VNX-1m
3' USB Cable Type A/miniB
3
Ships within Within 24 hrs.
VNX-2m
6' USB Cable Type A/miniB
6
Ships within Within 24 hrs.
