Vaunix Digital Attenuator Handover Test Systems bring affordability, functionality, reliability and simplicity to the microwave test bench.



Vaunix offers a range of attenuator matrices for unique wireless handover testing requirements.



Traditional fading simulations have relied upon complex and expensive single-box testers, which are ultimately limited by the number of ports, internal hardware, and proprietary and inflexible software. Other methods for enabling fading simulations may also involve an array of manual or programmable attenuators set to operate in a timed sequence. However, these methods fail to provide the necessary level of reconfigurability, low costs, and ease of setup/control offered by modular and efficient USB-based digital attenuators.



  • Covering a frequency range of 500 MHz to 6000 MHz, the 64x8 Digital Matrix Attenuator enables control of 64 input signals to 8 outputs while managing the signal power for every path
  • Each of the 512 connections are capable of providing up to 90 dB of attenuation with a step size of 0.1 dB.
  • The attenuators are easily programmed for fixed attenuation, swept attenuation ramps, and/or fading profiles directly from the included Graphical User Interface (GUI).



Now handover and MIMO testing of complex 5G, WiFi, and Satcom antenna modules is easier, quicker and more cost effective than ever. Learn more about our family of products below.




Handover Test Systems: Matrix Attenuators
Model Configuration Inputs Outputs Attenuation Paths Size
VMA-64x4-8110 64x4 64 4 64 3 RU Quote
VMA-64x8-8110 64x8 64 8 64 3 RU Quote
VMA-Q8X8 8x8 8 8 64 3 RU Quote
VMA-Q24X8SE 24x8 24 8 192 6 RU Quote
VMA-Q64X8SE 64x8 64 8 512 15 RU Quote
VMA-Q64X16SE 64x16 64 16 512 15 RU Quote



Handover Test Systems: Mesh Network Attenuators
Model Ports Attenuation Paths Size
VMN-7250-4 4 6 1 RU Quote
VMN-7250-9 9 36 2 RU Quote


Products



Vaunix VMA-Q64X8S Handover Test

VMA-Q64X8SE

Lab Brick® 64x8 Matrix Attenuator

The Vaunix Digital Attenuator Matrix Systems are easily customized, bidirectional, non-blocking test instruments. Attenuation matrixes are ideal instruments for mobile operators, Wi-Fi chip manufacturers and radio development teams testing handover and MIMO performance in research labs, product verification and development environments. The matrix attenuator allows the user to direct multiple input signals to multiple outputs while controlling the signal power on all paths.

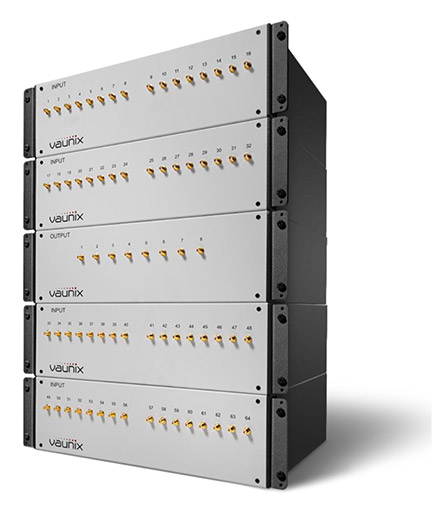

The VMA-Q64X8SE Attenuator Matrix System is a rack mounted 64 input x 8 output non- blocking test instrument. The VMA-Q64X8SE provides 90 dB of attenuation control range from 500 to 6000 MHz with a step size of 0.1 dB on all 512 possible path combinations. The attenuators are easily programmable for fixed attenuation, swept attenuation ramps and fading profiles using our highly developed Windows API DLL files and Linux platforms.



The VMA-Q64X8SE is AC powered and controlled through a single Ethernet port on the rear of the chassis. All input and output signals are available on the front panel with SMA or optional N Type connectors.

VMA-Q64X8SE

Lab Brick® 64x8 Matrix Attenuator

The Vaunix Digital Attenuator Matrix Systems are easily customized, bidirectional, non-blocking test instruments. Attenuation matrixes are ideal instruments for mobile operators, Wi-Fi chip manufacturers and radio development teams testing handover and MIMO performance in research labs, product verification and development environments. The matrix attenuator allows the user to direct multiple input signals to multiple outputs while controlling the signal power on all paths.



The VMA-Q64X8SE Attenuator Matrix System is a rack mounted 64 input x 8 output non- blocking test instrument. The VMA-Q64X8SE provides 90 dB of attenuation control range from 500 to 6000 MHz with a step size of 0.1 dB on all 512 possible path combinations. The attenuators are easily programmable for fixed attenuation, swept attenuation ramps and fading profiles using our highly developed Windows API DLL files and Linux platforms.



The VMA-Q64X8SE is AC powered and controlled through a single Ethernet port on the rear of the chassis. All input and output signals are available on the front panel with SMA or optional N Type connectors.

Vaunix VMA-Q64X8S Handover Test





vma-q64X8se 64x8 Matrix
vma-q64X8se 8x8 Matrix


Features

  • Reliable and Repeatable solid state digital attenuation
  • Includes Windows and Linux SDK
  • Single shot or repeating programmable attenuation ramps
  • Programmable fading profiles
  • Ethernet Control
  • Industry leading size - 15 rack units



Applications

  • WiFi 6, WiFi
  • LTE, 5G, 6G
  • MIMO, Multipoint Radio Fading Simulators
  • Semiconductor Test and Qualification Labs
  • Automated Test Equipment (ATE)



Resources


Vaunix VMA-Q8X8SE Handover Test

VMA-Q8X8SE

Lab Brick® 8x8 Matrix Attenuator

The Vaunix Digital Attenuator Matrix Systems are easily customized, bidirectional, non-blocking test instruments. Attenuation matrixes are ideal instruments for mobile operators, Wi-Fi chip manufacturers and radio development teams testing handover and MIMO performance in research labs, product verification and development environments. The matrix attenuator allows the user to direct multiple input signals to multiple outputs while controlling the signal power on all paths.



The VMA-Q8X8SE Attenuator Matrix System is a rack mounted 8 input x 8 output non-blocking test instrument with an integrated Windows server for independent operation. The VMA- Q8X8SE provides 90 dB of attenuation control range from 500 to 6000 MHz with a step size of 0.1 dB on all 64 possible path combinations. The attenuators are easily programmable for fixed attenuation, swept attenuation ramps and fading profiles using our highly developed Windows API DLL files and Linux platforms.



The VMA-Q8X8SE is AC powered and controlled through a single Ethernet port on the rear of the chassis. RF input signals enter through the rear panel with output signals available on the front panel.

VMA-Q8X8SE

Lab Brick® 8x8 Matrix Attenuator

The Vaunix Digital Attenuator Matrix Systems are easily customized, bidirectional, non-blocking test instruments. Attenuation matrixes are ideal instruments for mobile operators, Wi-Fi chip manufacturers and radio development teams testing handover and MIMO performance in research labs, product verification and development environments. The matrix attenuator allows the user to direct multiple input signals to multiple outputs while controlling the signal power on all paths.



The VMA-Q8X8SE Attenuator Matrix System is a rack mounted 8 input x 8 output non-blocking test instrument with an integrated Windows server for independent operation. The VMA- Q8X8SE provides 90 dB of attenuation control range from 500 to 6000 MHz with a step size of 0.1 dB on all 64 possible path combinations. The attenuators are easily programmable for fixed attenuation, swept attenuation ramps and fading profiles using our highly developed Windows API DLL files and Linux platforms.



The VMA-Q8X8SE is AC powered and controlled through a single Ethernet port on the rear of the chassis. RF input signals enter through the rear panel with output signals available on the front panel.

Vaunix VMA-Q8X8S Handover Test





vma-q8X8se 8x8 Matrix


Features

  • Reliable and Repeatable solid state digital attenuation
  • Includes Windows and Linux SDK
  • Single shot or repeating programmable attenuation ramps
  • Programmable fading profiles
  • Ethernet Control
  • Industry leading size - 3 rack units
  • Integrated Server



Applications

  • WiFi 6, WiFi
  • LTE, 5G, 6G
  • MIMO, Multipoint Radio Fading Simulators
  • Semiconductor Test and Qualification Labs
  • Automated Test Equipment (ATE)



Resources

Contact Our Support Team

Get our Updates
