LPS-123 Digital Phase Shifter

LPS-123

8 – 12 GHz USB Programmable Phase Shifter

The LPS-123 Lab Brick USB programmable 50 Ohm, high precision RF Phase Shifter has 360-degree range settable in 1-degree increments. Using our automated test stand, each phase shifter is calibrated across the frequency range providing optimal accuracy. The unit is powered and controlled by USB connection to a PC or self-powered hub, and is programmable from the included graphical user interface (GUI) software. Alternatively, Vaunix supplies LabVIEW drivers, Windows API DLL files, macOS DYLIB files, Linux drivers, Python examples, and more for users wishing to develop their own interface.



In Stock

Customization Available

LPS-123

8 – 12 GHz USB Programmable Phase Shifter

The LPS-123 Lab Brick USB programmable 50 Ohm, high precision RF Phase Shifter has 360-degree range settable in 1-degree increments. Using our automated test stand, each phase shifter is calibrated across the frequency range providing optimal accuracy. The unit is powered and controlled by USB connection to a PC or self-powered hub, and is programmable from the included graphical user interface (GUI) software. Alternatively, Vaunix supplies LabVIEW drivers, Windows API DLL files, macOS DYLIB files, Linux drivers, Python examples, and more for users wishing to develop their own interface.



In Stock

Customization Available
LPS-123 Digital Phase Shifter

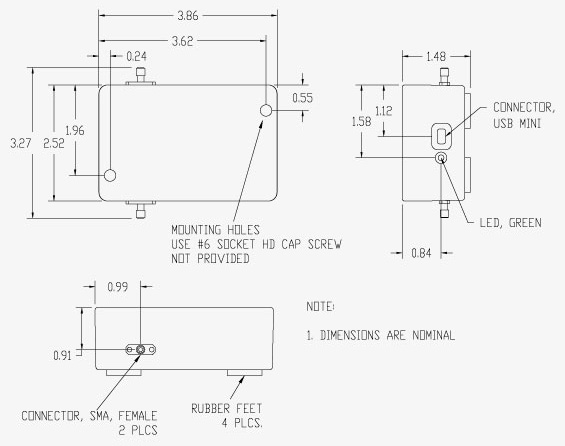

Vaunix LPS-123 Phase Shifter Mechanical Drawing

Features

  • USB powered and controlled
  • Includes Windows GUI and SDK, Linux SDK, LabVIEW driver, Python examples and more
  • 360-degree control in 1-degree steps
  • SMA connectors
  • Easily programmable for ATE applications

Applications

  • Beam forming
  • Signal cancellation
  • Phase modulators
  • Phased array antenna systems

Software

Resources

LPS-123
Freq.
Min
(GHz)		Freq.
Max
(GHz)		Phase
Adjustment
Range		Phase
Adjustment
Resolution		Phase
Adjustment
Accuracy
Typ.		Programmable
Phase
Profiles		External
Triggering		Response
Time
(µsec.)		Insertion
Loss		USB
Connector
812360°1°± 2.5°User DefinedOptional106 dB typical, 10 dB maximumMiniB
