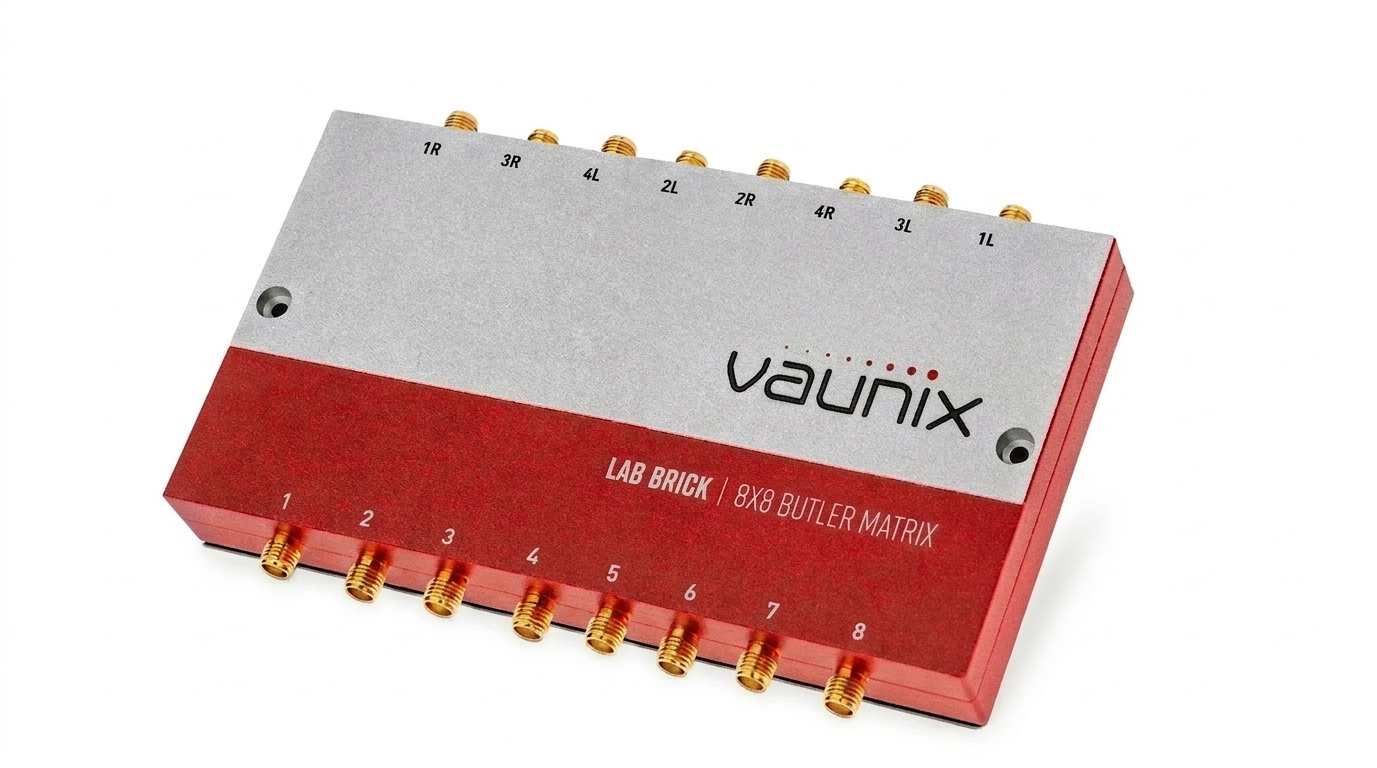

LBM-7250-8 2400 – 7250 MHz 8x8 Lab Brick® Butler Matrix

LBM-7250-8

2400 – 7250 MHz 8x8 Lab Brick® Butler Matrix

The Lab Brick Butler Matrix is a cost-effective beam forming tool used with phased array antennas. Engineers use the Vaunix Butler Matrix to improve phase progression technology and address angular coverage issues by shaping radiation patterns and steering antenna array beams towards a desired direction in WiFi, WiFi6E, WiFi7, 5G, Bluetooth and other communication systems.



The LBM-7250-8 is a passive beam forming solution in a small, user-friendly package. The device can be mounted to a face plate with front access in a rack mount configuration. The LBM-7250-8 can also be mounted to a chassis from the top or bottom using the provided mounting holes.



Lead Time: 4 - 5 weeks

Customization Available

LBM-7250-8

2400 – 7250 MHz 8x8 Lab Brick® Butler Matrix

The Lab Brick Butler Matrix is a cost-effective beam forming tool used with phased array antennas. Engineers use the Vaunix Butler Matrix to improve phase progression technology and address angular coverage issues by shaping radiation patterns and steering antenna array beams towards a desired direction in WiFi, WiFi6E, WiFi7, 5G, Bluetooth and other communication systems.



The LBM-7250-8 is a passive beam forming solution in a small, user-friendly package. The device can be mounted to a face plate with front access in a rack mount configuration. The LBM-7250-8 can also be mounted to a chassis from the top or bottom using the provided mounting holes.



Lead Time: 4 - 5 weeks

Customization Available
LBM-7250-8 2400 – 7250 MHz 8x8 Lab Brick® Butler Matrix

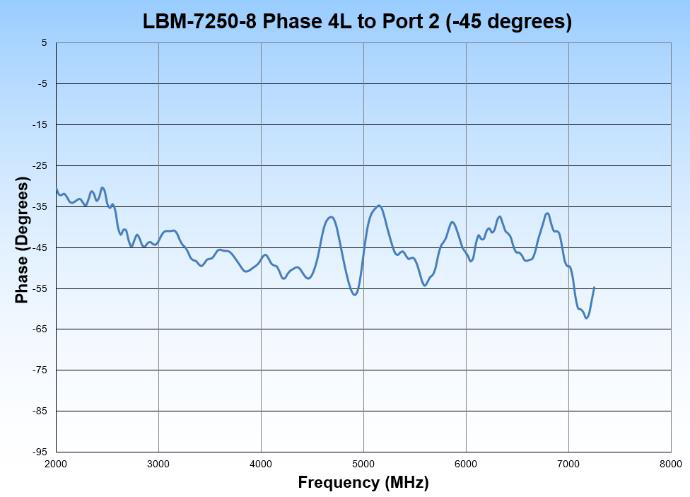

LBM-7250-8 Phase 4L to Port 2

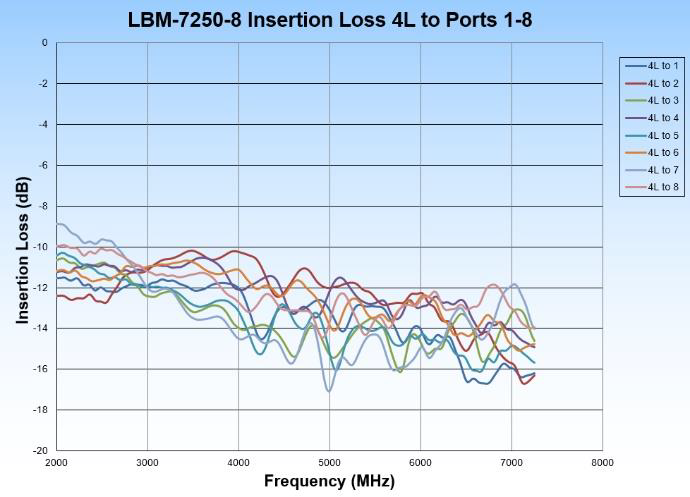

LBM-7250-8 Insertion Loss 4L ports 1-8

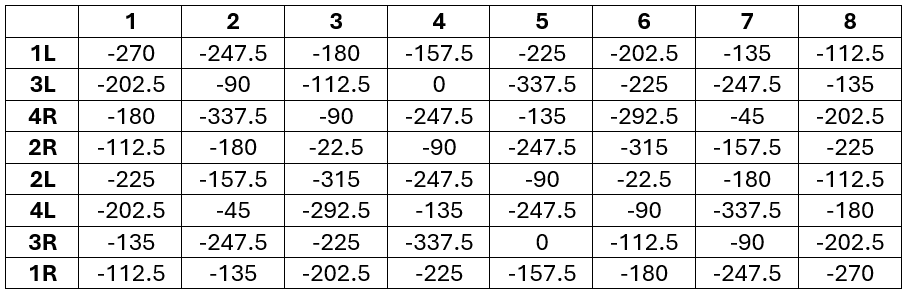

LBM-7250-8 Phase Mapping

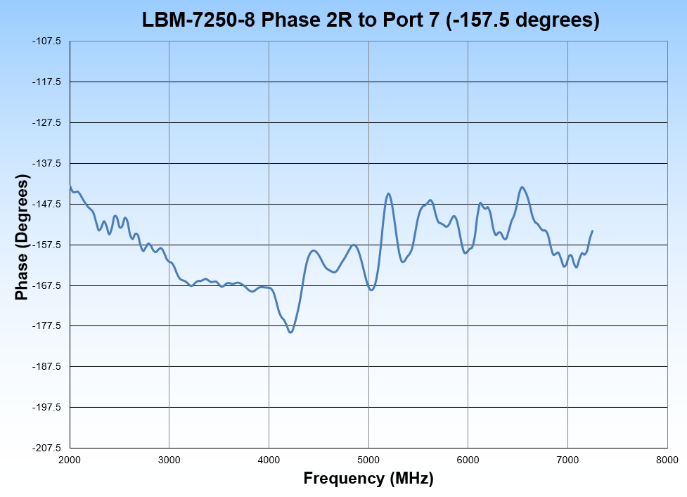

LBM-7250-8 Phase 2R to Port 7

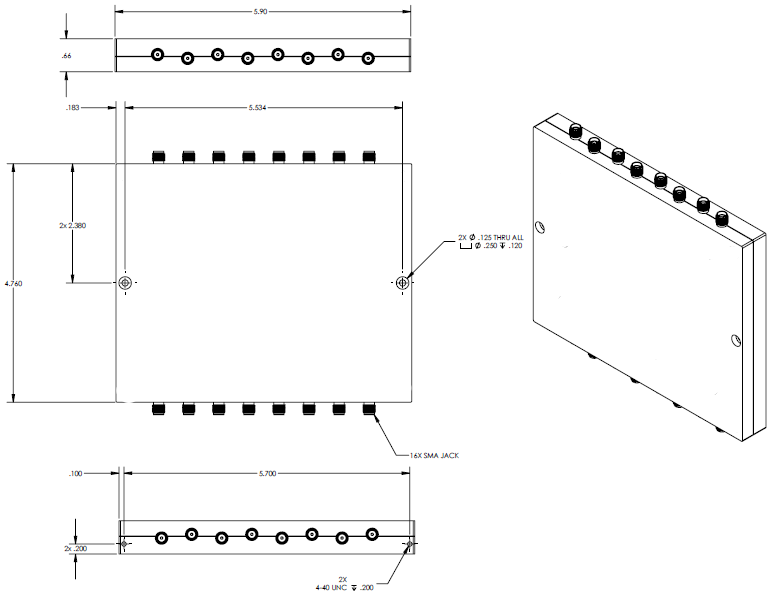

LBM-7250-8 Mechanical
LBM-7250-8 Phase 4R to port 7
LBM-7250-8 Phase 1L to POrt 2

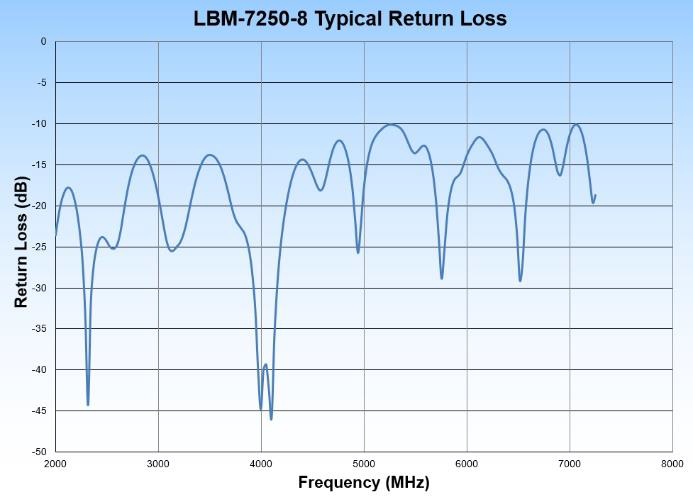

LBM-7250-8 Typical Return Loss

Features

  • Broad Frequency Range Covers all WiFi/WiFi6E Bands
  • Excellent Phase Accuracy
  • Front and Top Mounting Options
  • Sized to fit multiple units into a single rack unit for ATE and laboratory applications

Applications

  • Phased Antenna Array Beam Forming
  • WiFi, WiFi6E, 5G, LTE, Bluetooth
  • MIMO Simulation and Test
  • Radar

Resources

LBM-7250-8
Freq.
Min
(MHz)		Freq.
Max
(MHz)		Phase
Accuracy
(deg) Typ. 		Insertion
Loss
(dB) Typ.		Configuration
24007250+/- 20 deg168 x 8
