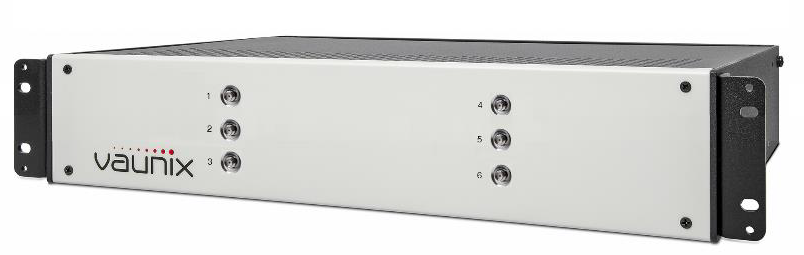

VMNA-7250-6 Product Image

VMNA-7250-6

700 – 7250 MHz 6 Port Mesh Network Attenuator

The Vaunix Mesh Network Attenuator Systems are easily customized, bidirectional, nonblocking test instruments. Mesh system attenuators allow simple control of the signal levels between each port.



The VMNA-7250-6 Mesh Network Attenuator System is a rack mounted 6 port crossbar test instrument. The VMNA-7250-6 provides 110 dB of attenuation control range from 700 to 7250 MHz with a step size of 0.1 dB on all 15 possible path combinations. The attenuators are easily programmable for fixed attenuation, swept attenuation ramps and fading profiles using our highly developed Windows API DLL files and Linux platforms.



The VMNA-7250-6 is powered from the USB port and controlled through either the USB or Ethernet interface on the rear of the system. All RF ports are located on the front of the chassis.

VMNA-7250-6

700 – 7250 MHz 6 Port Mesh Network Attenuator

The Vaunix Mesh Network Attenuator Systems are easily customized, bidirectional, nonblocking test instruments. Mesh system attenuators allow simple control of the signal levels between each port.



The VMNA-7250-6 Mesh Network Attenuator System is a rack mounted 6 port crossbar test instrument. The VMNA-7250-6 provides 110 dB of attenuation control range from 700 to 7250 MHz with a step size of 0.1 dB on all 15 possible path combinations. The attenuators are easily programmable for fixed attenuation, swept attenuation ramps and fading profiles using our highly developed Windows API DLL files and Linux platforms.



The VMNA-7250-6 is powered from the USB port and controlled through either the USB or Ethernet interface on the rear of the system. All RF ports are located on the front of the chassis.

VMNA-7250-6 Product Image

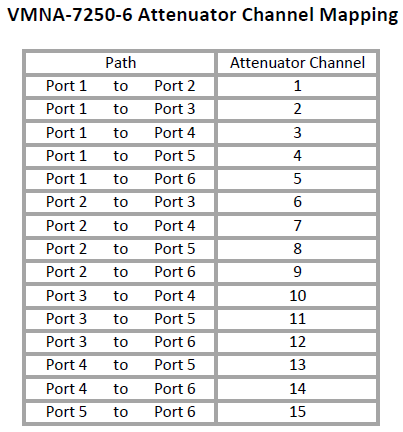

VMNA-7250-6 Mapping

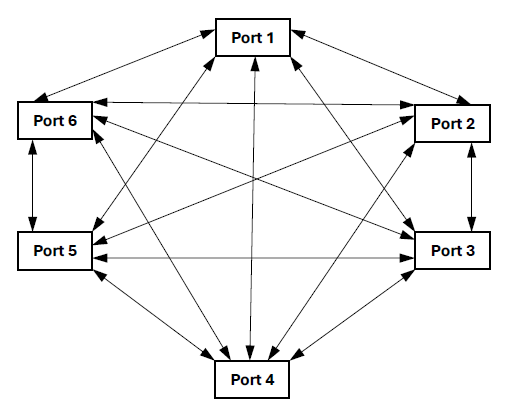

VMNA-7250-6 Functional Chart

Features

  • Reliable and Repeatable solid state digital attenuation
  • Includes Windows and Linux SDK
  • Single shot or repeating programmable attenuation ramps
  • Programmable fading profiles
  • Two Rack Unit Package

Applications

  • Mesh Network Radio Testing
  • Wi-Fi 6, Wi-Fi
  • LTE, 5G, 6G
  • MIMO, Multipoint Radio Fading Simulators
  • IoT and Zigbee device testing
  • Automated Test Equipment (ATE)
VMNA-7250-6
ConfigurationInputsOutputsAttenuation PathsSize
6152RU

Accessories

VNX-3m
9' USB Cable Type A/miniB
9
Ships within Within 24 hrs.
VNX-5m
15' USB Cable Type A/miniB
15
Ships within Within 24 hrs.
VNX-1m
3' USB Cable Type A/miniB
3
Ships within Within 24 hrs.
VNX-2m
6' USB Cable Type A/miniB
6
Ships within Within 24 hrs.
